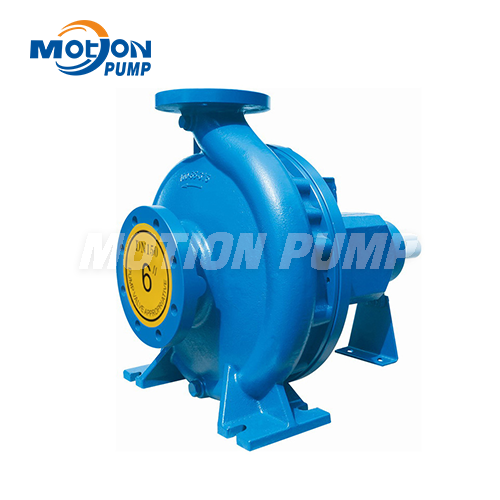

CP150-34B VACUUM ASSISTED PUMP DEWATERING PUMP CLEAN WATER CENTRIFUGAL PUMP 6 INCHES

Item No.: CP150-34B
The MOTION PUMP CP150-34B series dewatering pump is a standard ISO2858 design water pump. It is single stage end-suction centrifugal and high effiency pump.
Description Performance Curve Review
Description
SUMMARIZE
The MOTION PUMP CP150-34B dewatering pump is a standard ISO2858 design water pump. It is single stage end-suction centrifugal and high effiency pump.

The advantages: its hydraulic capability is distributed extensively, many options for the user, convenient to check and repair, the efficiency and manufacturing quality is up to advanced international standard.

The pump is suitable for wellpoint, quarrying, industrial and city water supply, water drainage. The standard design temperature should not be higher than 80°C.

SPECIFICATIONS
Model CP150-34B
Max flow 300 m³/h
Max head 34 m
Connections 150mm(6”)
Max shaft power  29.9 kW
Maximum speed 1800 Rpm
Solids handing Not allowed

PUMP CONSTRUCTION
Pump casing Cast iron
Impeller Cast iron
Shaft S45C
Shaft sealing Double mechanical seal
Impeller type Closed impeller

FIELD USAGE

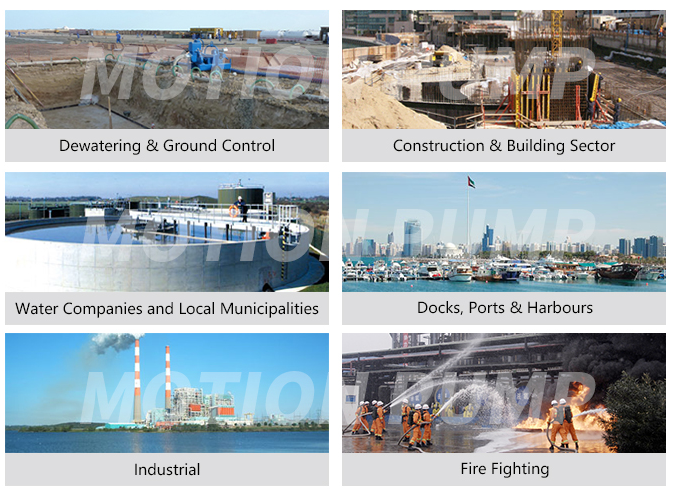

APPLICATIONS
  • Mining
  • Waste water
  • Ground dewatering
  • Wellpoint dewatering
  • Building & Construction
  • Industrial
  • Refineries, power
  • Pipeline & Drilling
  • Quarries
  • Emergency water management
  • Site drainage
  • Process water



FEATURES
  • Clean liquids dewatering pump
  • Auto vacuum pump priming system
  • Rapid "dry" self priming, up to 9.5 m suction lift
  • Easy to operate -  just set up the hoses and start the control panel
  • Maintenance free diaphragm vacuum pump
  • Pump dry run protect
  • Closed impeller for clean water
  • Anti-rust epoxy paint
  • Lower maintenance costs

SUSTAINABILITY
• High efficiency pumps minimizing fuel consumption
• Emissions in accordance with EU stage & US EPA Tier regulations
• Corrosion free hot dip galvanized frame as option
• 100% Oil-spill free priming system


WHY CHOOSE US?

• Complete in-house design & production
• Over 30 years of experience in the market
• Extensive testing facility in-house
• Contemporary & functional design
• Durable & eco-friendly materials
• Custom builds available

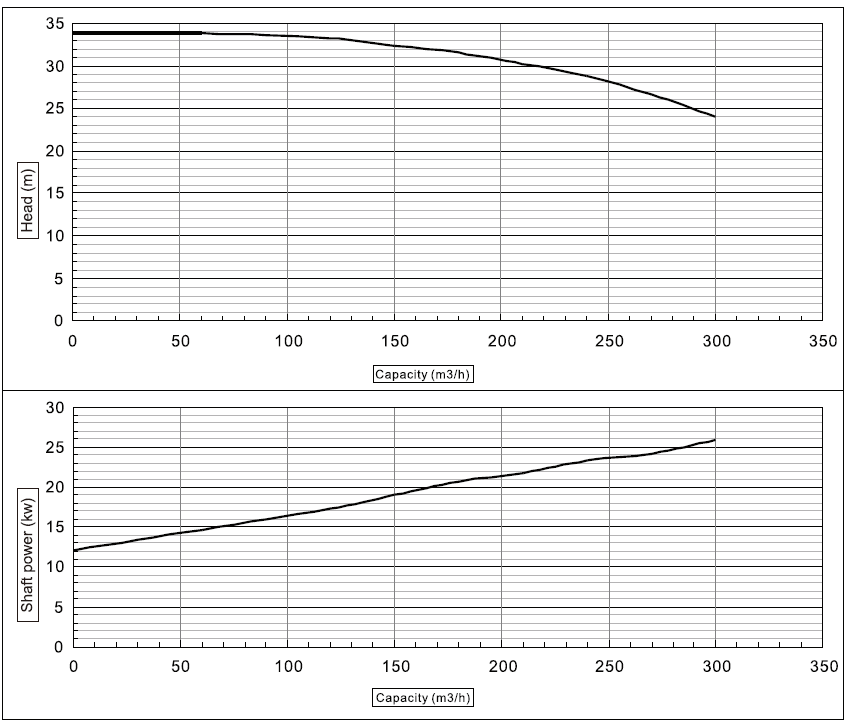

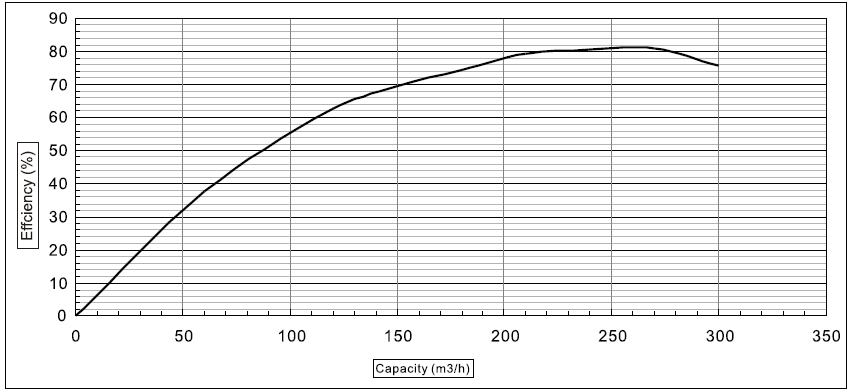

Performance Curve
