SUMMARIZE

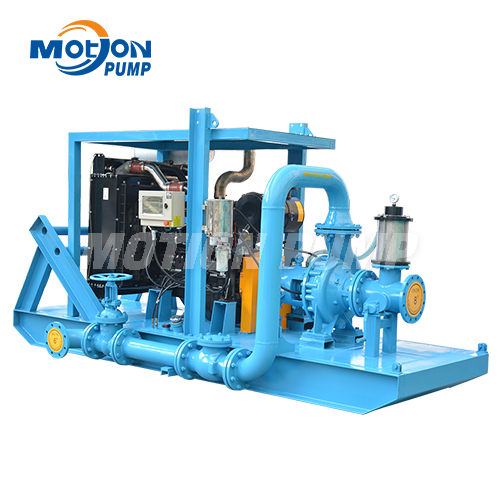

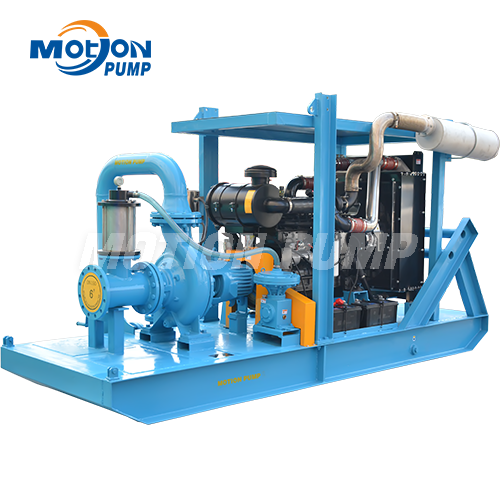

The vacuum primed MP150-450 pump units are capable of pumping not only high volume flow water against high head situations, but also large quantities of solids from the open pits, while maintaining high efficiency. CD4MCu of corrosion and wear resistant materials are available to suit aggressive mine water.
They are supplied on heavy duty skid. The pumps can be used in a range of environmental conditions, including tropical temperatures.
The MP range can be fully customized to suit mine specific applications. Customized options available including suction and discharge arrangements, monitoring instrumentation, auto start/stop function, customer color and more.
SPECIFICATIONS
| Model |
MP150-450 |
| Suction Connection |
150mm (6'') |
| Discharge Connection |
150mm (6'') |
| Flow Max |
357 m3/h |
428 m3/h |
500 m3/h |
| Head Max |
77 m |
110 m |
150 m |
| Operating Speed |
1500 Rpm |
1800 Rpm |
2100 Rpm |
| Solids handling Max. |
40 mm |
| Self priming lift |
9.5 m |
9.5 m |
9.5 m |
| Bearing type |
Ball |
Ball |
Ball |
Engine brand
|
Cummins
|
Engine model
|
6BT5.9-P115
|
6CTA8.3-P230
|
6LTAA8.9-C325
|
Engine power
|
115 HP |
230 HP |
325 HP |
STANDARD CONSTRUCTION
| Pump body |
CD4MCu |
| Impeller |
CD4MCu |
| Front wear plate |
CD4MCu |
| Back wear plate |
CD4MCu |
| Shaft |
3Cr13 |
| Impeller design |
Open impeller |
| Shaft sealing |
Double mechanical seal with oil bath |
PUMP PRIMING SYSTEM
| Vacuum pump |
Diaphragm type |
| Capacity |
50 CFM |
| Size |
25 mm |
| Vacuum level |
-9.5 m |
| Operation speed |
1500 Rpm |
| Power requirement |
4 kW |
| Material |
Ductile iron with Buna-N diaphragm |

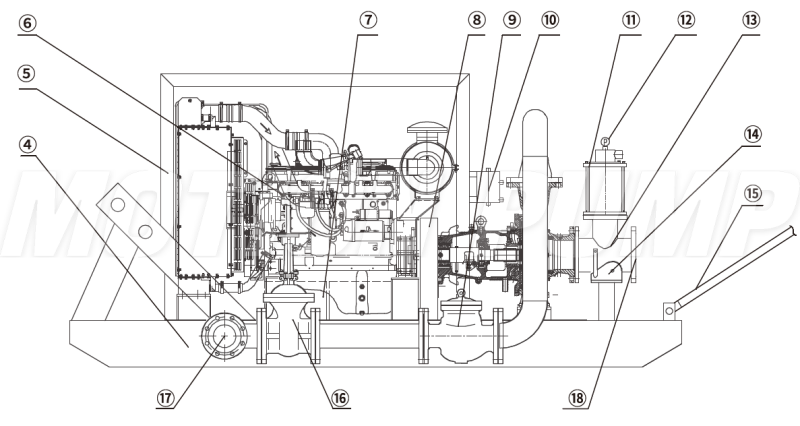

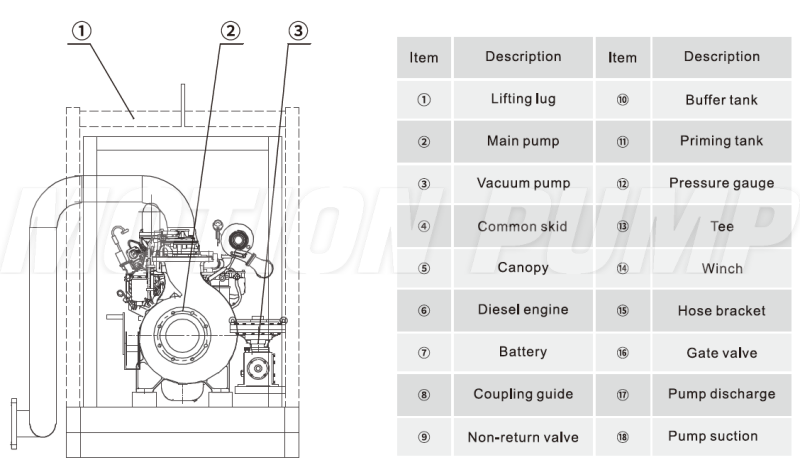

STRUCTURE
FEATURES
| ► |
High flow, high head solids handling |
| ► |
CD4MCu corrosion resistant impeller and wear plates |
| ► |
Dry run double mechanical seal |
| ► |
50 CFM high performance vacuum pump |
| ► |
Rapid "dry" self priming, up to 9.5 m suction lift |
| ► |
Super heavy duty construction skid |
| ► |
Cummins engine |
| ► |
Central lifting point |
| ► |
Push bar designed for large dozers and earth moving equipment |
| ► |
Heavy duty canopy, providing protection from weather, fly rock etc |

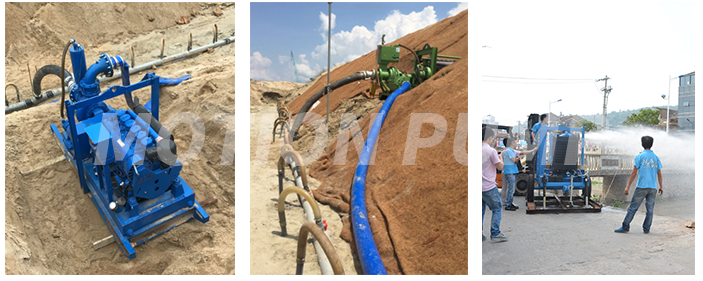

FIELD USAGE
APPLICATIONS
| ► |
Mining |
| ► |
Waste water |
| ► |
Ground dewatering |
| ► |
Well point dewatering |
| ► |
Building & Construction |
| ► |
Industrial |
| ► |
Refineries, power |
| ► |
Pipeline & Drilling |
| ► |
Quarries |
| ► |
Emergency water management |
WHY CHOOSE US?
| ► |
Complete in-house design & production |
| ► |
Over 30 years of experience in the market |
| ► |
Extensive testing facility in-house |
| ► |
Contemporary & functional design |
| ► |
Durable & eco-friendly materials |
| ► |
Custom builds available |
