| Model | YP150B |
| Suction | 150mm (6'') DIN Flange |
| Discharge | 150mm (6'') DIN Flange |
| Max capacity | 380 m3/h (105 L/s) |
| Max head | 65 meters |
| Solids handling | 76 mm (3'') |
| Max speed | 2200 Rpm |
| Self priming lift | 9.5 m |
| Impeller type | Spiral semi-open type |
| Impeller diameter | 280 mm |
| Shaft sealing | Double mechanical seal with oil bath |
| Discharge non return valve | Disc type |
| Pump design with outlet | 45 degrees |
| Pump design | API standard design |
PUMP CONSTRUCTION
| Pump casing | Ductile iron |
| Impeller | Stainless steel |
| Volute | Ductile iron |
| Front cover | Ductile iron |
| Suction cover | Ductile iron |
| Shaft | 3Cr13 |
| Pump sleeve | Stainless steel |
| Radial bearing | Roller bearing |
| Axial bearing | Double thrust bearing |
| Mechanical seal | Burgmann standard |
PUMP ADVANTAGES
| Design standard | API standard. Pump shaft diameter is oversize |
| Material | Ductile iron castings |
Impeller type |
Semi open impeller with spiral design, can cut fiber-like meidum. |
Mechanical seal |
Burgman type double mechanical seal and oil bath, dry run protection. |
| Lite time | 20 years service life design, high intensity castings and stainless steel impeller. |
FEATURES
• Solids handling dewatering pump
• Auto vacuum pump priming system
• Rapid "dry" self priming, up to 9.5 m suction lift
• Easy to operate - just set up the hoses and start the control panel
• Maintenance free diaphragm vacuum pump
• Pump dry run protect
• Solids handling up to 76 mm
• 100% Oil-spill free priming system
SUSTAINABILITY
• High efficiency pumps minimizing fuel consumption
• Emissions in accordance with EU stage & US EPA Tier regulations
• Corrosion free hot dip galvanized frame as option
• 100% Oil-spill free priming system

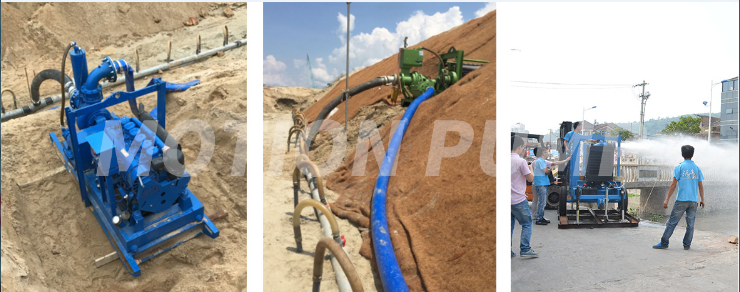

FIELD USAGE
APPLICATIONS
• Mining
• Waste water
• Ground dewatering
• Well point dewatering
• Building & Construction
• Industrial
• Refineries, power
• Pipeline & Drilling
• Quarries
• Emergency water management
• Site drainage
WHY CHOOSE US?
• Complete in-house design & production
• Over 30 years of experience in the market
• Extensive testing facility in-house
• Contemporary & functional design
• Durable & eco-friendly materials
• Custom builds available
