SUMMARIZE

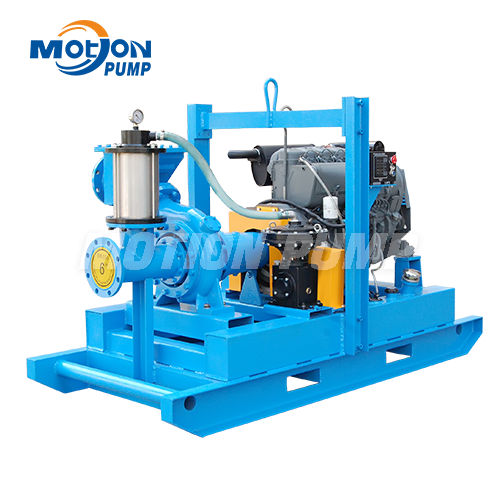

The MOTION PUMP YP150FLS are renowned for their solids handling capacity and cost efficient solutions. Using high efficiency pumps and advanced diesel engine, the pumps offer maximum performance at minimal cost.
The MOTION PUMP YP150FLS features a 100% mechanical priming system, quickly priming and re-priming, even from dry condition. YP150FLS prime pump has been designed to simplify both the operation and maintenance of the unit.
The powerful YP150FLS has proven itself a pump of choice for well point, quarrying, industrial, water transfer applications. Used extensively throughout the mining industry and by major rental and dewatering contractors.
SPECIFICATIONS
| Model |
YP150FLS |
| Suction |
150mm (6'') DIN Flange |
| Discharge |
150mm (6'') DIN Flange |
| Max capacity |
380 m3/h (105 L/s) |
| Max head |
65 meters |
| Solids handling |
76 mm (3'') |
| Max speed |
2200 Rpm |
| Self priming lift |
9.5 m |
| Impeller type |
Spiral semi-open type |
| Impeller diameter |
280 mm |
| Shaft sealing |
Double mechanical seal with oil bath |
| Discharge non return valve |
Disc type |
| Priming chamber |
Peel valve design |
| Diesel engine |
Deutz F4L912 air cooled |
| Pump design with outlet |
45 degrees |
| Vacuum pump transmission |
Belt and pulleys |
| Pump design |
API standard design |
| Weight |
1300 kgs |
PUMP CONSTRUCTION
| Pump casing |
Ductile iron |
| Impeller |
Stainless steel |
| Volute |
Ductile iron |
| Front cover |
Ductile iron |
| Suction cover |
Ductile iron |
| Shaft |
3Cr13 |
| Pump sleeve |
Stainless steel |
| Radial bearing |
Roller bearing |
| Axial bearing |
Double thrust bearing |
| Mechanical seal |
Burgmann standard |
PUMP PRIMING SYSTEM
| Vacuum pump |
Diaphragm type |
| Capacity |
50 CFM |
| Size |
25 mm |
| Vacuum level |
-9.5 m |
| Operation speed |
1500 Rpm |
| Power requirement |
4 kW |
| Material |
Ductile iron with Buna-N diaphragm |
FEATURES
• Solids handling dewatering pump
• Auto vacuum pump priming system
• Rapid "dry" self priming, up to 9.5 m suction lift
• Easy to operate - just set up the hoses and start the control panel
• Maintenance free diaphragm vacuum pump
• Pump dry run protect
• Solids handling up to 76 mm
• 100% Oil-spill free priming system
SUSTAINABILITY• High efficiency pumps minimizing fuel consumption
• Emissions in accordance with EU stage & US EPA Tier regulations
• Corrosion free hot dip galvanized frame as option
• 100% Oil-spill free priming system
FIELD USAGE
APPLICATIONS
• Mining
• Waste water
• Ground dewatering
• Well point dewatering
• Building & Construction
• Industrial
• Refineries, power
• Pipeline & Drilling
• Quarries
• Emergency water management
• Site drainage
WHY CHOOSE US?• Complete in-house design & production
• Over 30 years of experience in the market
• Extensive testing facility in-house
• Contemporary & functional design
• Durable & eco-friendly materials
• Custom builds available
